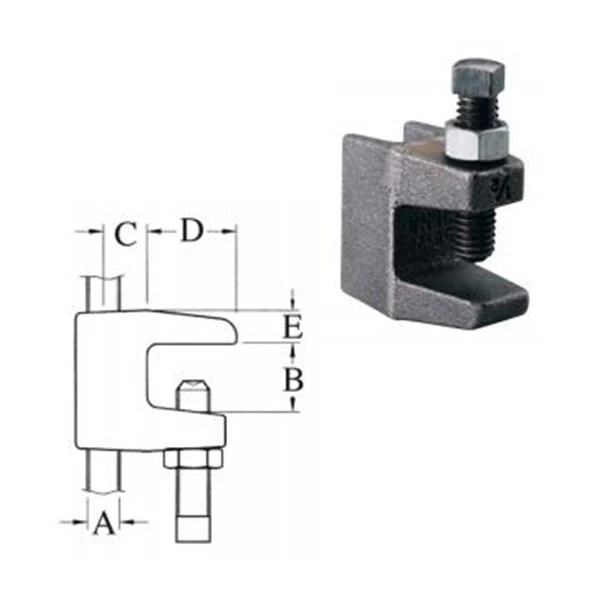

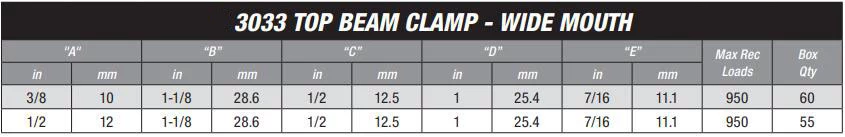

3033 Wide Mouth Top Beam Clamp
* cUL approved 3/8" rod - 1/2" thru 4" pipe size and 1/2" rod - 5" thru 8" pipe size only
* FM approved 3/8" rod - 3/4" thru 4" pipe size only
Approvals: Underwriters’ Laboratory Listed and FM Appro
- Material:
- Malleable iron casting with a hardened steel set screw
- Application:
- Designed for attaching a hanger rod to the top or bottom flange of a bar joist or other structural shapes where the thickness of the flange does not exceed 1"
- Ordering:
- Specify figure number, and rod size
* cUL approved 3/8" rod - 1/2" thru 4" pipe size and 1/2" rod - 5" thru 8" pipe size only
* FM approved 3/8" rod - 3/4" thru 4" pipe size only
Approvals: Underwriters’ Laboratory Listed and FM Approved products are manufactured by Jinan Meide. Conforms with Manufacturers Standardization Society ANSI/MSS-SP-58 (Type 19 & 23), Install in accordance with ANSI/MSS-SP-69. Exceeds requirements of NFPA-13.
